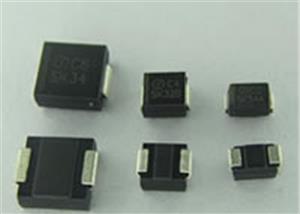

瞬态电压抑制二极管，简称TVS
是一种限压型的过电压保护器件, 它能以PS级的速度把过高的电压限制在一个安全范围之内，从而起到保护后面电路的作用。广泛应用在半导体及敏感的电子零件过电压、ESD保护，反应速度快，电压抑制能力强。
| 产品说明： |
| 产品详细说明 : | Part Number
CA:BI-polar
A:Uni-polar | Reverse
Standoff
Voltage | Breakdown
Voltage
VBR(V) | Test
Current
IT | Clamping
Voltage
@Ipp Vc | Pulse Current
Ipp (A) | Reverse
Leakage
@ Vrwm IR | | Vrwm(V) | MIN.@IT | MAX.@IT | mA | MAX(V) | SMAJ | SMBJ | SMCJ | SMDJ | μA | | 5.0(C)A | 5 | 6.4 | 7.25 | 10 | 9.2 | 43.5 | 65.2 | 163 | 312.5 | 800 | | 6.0(C)A | 6 | 6.67 | 7.67 | 10 | 10.3 | 38.8 | 58.3 | 145.6 | 263.2 | 800 | | 6.5(C)A | 6.5 | 7.22 | 8.3 | 10 | 11.2 | 35.7 | 53.6 | 133.9 | 243.9 | 500 | | 7.0(C)A | 7 | 7.78 | 8.95 | 10 | 12 | 33.3 | 50 | 125 | 225.6 | 200 | | 7.5(C)A | 7.5 | 8.33 | 9.58 | 1 | 12.9 | 31 | 46.6 | 116.3 | 209.8 | 100 | | 8.0(C)A | 8 | 8.89 | 10.23 | 1 | 13.6 | 29.4 | 44.1 | 110.3 | 200 | 50 | | 8.5(C)A | 8.5 | 9.44 | 10.82 | 1 | 14.4 | 27.7 | 41.7 | 104.2 | 188.7 | 20 | | 9.0(C)A | 9 | 10 | 11.5 | 1 | 15.4 | ／ | 39 | 97.4 | 177.5 | 10 | | 10(C)A | 10 | 11.1 | 12.8 | 1 | 17 | 23.5 | ／ | ／ | 159.6 | 5 | | 11(C)A | 11 | 12.2 | 14 | 1 | 18.2 | ／ | 33 | 82.4 | 149.3 | 5 | | 13(C)A | 13 | 14.4 | 16.5 | 1 | 21.5 | 18.6 | 27.9 | 69.7 | 126.1 | 5 | | 15(C)A | 15 | 16.7 | 19.2 | 1 | 24.4 | 16.4 | 24.6 | 61.5 | 111.5 | 5 | | 17(C)A | 17 | 18.9 | 21.7 | 1 | 27.6 | 14.5 | 21.7 | 53.3 | 98.4 | 5 | | 18(C)A | 18 | 20 | 23.3 | 1 | 29.2 | 13.7 | 20.5 | 51.4 | 93.2 | 5 | | 20(C)A | 20 | 22.2 | 25.5 | 1 | 32.4 | 12.3 | 18.5 | 46.3 | 83.8 | 5 | | 22(C)A | 22 | 24.4 | 28 | 1 | 35.5 | ／ | 16.9 | 42.2 | 76.1 | 5 | | 24(C)A | 24 | 26.7 | 30.7 | 1 | 38.9 | 10.3 | 15.2 | 38.6 | 69.8 | 5 | | 26(C)A | 26 | 28.9 | 33.2 | 1 | 42.1 | 9.5 | 14.2 | 35.6 | 64.4 | 5 | | 28(C)A | 28 | 31.1 | 35.8 | 1 | 45.4 | 8.8 | 13.2 | 33.1 | 60 | 5 | | 30(C)A | 30 | 33.3 | 38.3 | 1 | 48.4 | 8.3 | 12.4 | 31 | 56.1 | 5 | | 33(C)A | 33 | 36.7 | 42.2 | 1 | 53.3 | 7.5 | 11.3 | 28.1 | 50.8 | 5 | | 36(C)A | 36 | 40 | 46 | 1 | 58.1 | 6.9 | 10.3 | 25.8 | 46.7 | 5 | | 40(C)A | 40 | 44.4 | 51.1 | 1 | 64.5 | 6.2 | 9.3 | 23.2 | 42 | 5 | | 43(C)A | 43 | 47.8 | 54.9 | 1 | 69.4 | 5.7 | ／ | ／ | 39.1 | 5 | | 45(C)A | 45 | 50 | 57.5 | 1 | 72.7 | 5.5 | 8.3 | 20.6 | 37.4 | 5 | | 48(C)A | 48 | 53.3 | 61.3 | 1 | 77.4 | 5.2 | ／ | ／ | 35.1 | 5 | | 51(C)A | 51 | 56.7 | 65.2 | 1 | 82.4 | 4.9 | 7.3 | 18.2 | 32.9 | 5 | | 54(C)A | 54 | 60 | 69 | 1 | 87.1 | 4.6 | ／ | 17.2 | 31.2 | 5 | | 58(C)A | 58 | 64.4 | 74.1 | 1 | 93.6 | ／ | 6.4 | ／ | 29.1 | 5 | | 60(C)A | 60 | 66.7 | 76.7 | 1 | 96.8 | 4.1 | ／ | ／ | 28 | 5 | | 64(C)A | 64 | 71.1 | 81.8 | 1 | 103 | ／ | 5.8 | 14.6 | 26.3 | 5 | | 70(C)A | 70 | 77.8 | 89.5 | 1 | 113 | 3.5 | 5.3 | ／ | 24 | 5 | | 75(C)A | 75 | 83.3 | 95.8 | 1 | 121 | 3.3 | ／ | ／ | 22.4 | 5 | | 78(C)A | 78 | 86.7 | 99.7 | 1 | 126 | 3.2 | 4.7 | 11.4 | 21.6 | 5 | | 85(C)A | 85 | 94.4 | 108.2 | 1 | 137 | ／ | 4.4 | 10.4 | 19.9 | 5 | | 90(C)A | 90 | 100 | 115.5 | 1 | 146 | 2.7 | ／ | 10.3 | 18.8 | 5 | | 100(C)A | 100 | 110 | 128 | 1 | 162 | 2.5 | 3.7 | 9.3 | 16.8 | 5 | | 110(C)A | 110 | 122 | 140.5 | 1 | 177 | 2.3 | 3.4 | ／ | 15.3 | 5 | | 120(C)A | 120 | 133 | 153 | 1 | 193 | ／ | ／ | 7.9 | 14 | 5 | | 130(C)A | 130 | 144 | 165.5 | 1 | 209 | 1.9 | 2.9 | ／ | 13 | 5 | | 150(C)A | 150 | 167 | 192.5 | 1 | 243 | 1.6 | 2.5 | 6.2 | 11.2 | 5 | | 170(C)A | 170 | 189 | 217.5 | 1 | 275 | 1.4 | 2.2 | 5.5 | 10.5 | 5 | | 180(C)A | 180 | 198 | 230.4 | 1 | 292 | ／ | ／ | 5.1 | ／ | 5 | | 190(C)A | 190 | 209 | 243.2 | 1 | 308 | ／ | 2 | ／ | ／ | 5 | | 200(C)A | 200 | 220 | 256 | 1 | 324 | ／ | 1.9 | 4.6 | ／ | 5 | | 210(C)A | 210 | 231 | 268.8 | 1 | 340 | 1.2 | ／ | 4.4 | ／ | 5 | | 220(C)A | 220 | 242 | 281.6 | 1 | 356 | ／ | 1.7 | 4.2 | ／ | 5 | | 250(C)A | 250 | 279 | 309 | 1 | 405 | 1 | 1.5 | 3.7 | ／ | 5 | | 300(C)A | 300 | 335 | 371 | 1 | 486 | 0.8 | 1.3 | 3.1 | ／ | 5 | | 350(C)A | 350 | 391 | 432 | 1 | 567 | 0.7 | 1.1 | 2.6 | ／ | 5 | | 400(C)A | 400 | 447 | 494 | 1 | 648 | 0.6 | 0.9 | 2.3 | ／ | 5 | | 440(C)A | 440 | 492 | 543 | 1 | 713 | 0.6 | ／ | ／ | ／ | 5
|
|
